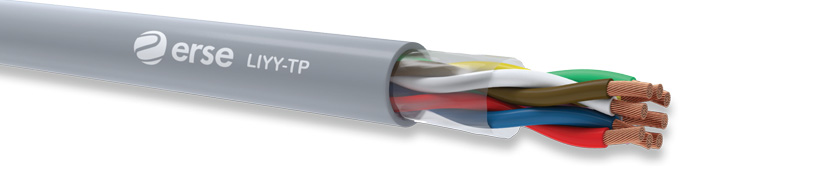

Erse Kablo - LIYY-TP

Erse Kablo – LIYY-TP

Kategoriler: ,

Açıklama

  • Enstrüman ve kontrol mühendisliğinde
  • Endüstriyel elektronikte
  • Bilgisayar ve ofis makinelerinde
  • Bina içi haberleşme sistemlerinde
  • Bina içi ses sistemlerinde
  • Güvenlik sistemlerinde

NOTLAR

  • Esnek yapıları ile dar alanlarda rahatlıkla uygulanabilirler.
  • Bu tip kablolar dış ortamlarda kullanılmaz.
  • LIYY-TP-OZ: Numara kodlu siyah damarlar.

İletkenIEC 60228; DIN VDE 0295; EN 60228 Sınıf 5
Bükülü Elektrolitik Tavlı Bakır
YalıtımEN 50290-2-21 PVC Kompaund
Yalıtım RenkDIN 47100
BükümÇift büküm katlar halinde
Ayırıcı BantPes Bant
KılıfEN 50290-2-22 PVC Kompaund
Kılıf RengiRAL 7001 Gri

İLETKEN
DİRENCİ		YALITIM DİRENCİEFEKTİF
KAPASİTE		AKIM TAŞIMA
KAPASİTESİ		ÇALIŞMA VOLTAJI
mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		Ω/km
79
56
39
26
19,5
13,3
7,98		MΩxkm
0,22mm²/0,34mm²= 200
≥ 0,50mm²= 20		mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		pf/m
110
110
120
120
120
120
120		mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		A
2,5
4,5
6,0
13
16
20
25		0,22 ve 0,34 mm²= 250 V
≥0,50 mm²=300/500 V
TEST VOLTAJIBÜKÜLME YARIÇAPIÇALIŞMA SICAKLIĞIALEV GECİKTİRİCİLİK
TESTİ
0,22 ve 0,34 mm²=1200 V
≥0,50 mm² =2000 V		7,5X D-30ºCs1+70ºCIEC 60332-1-2
DIN EN 60332-1-2
EN 60332-1-2

KOD NOÇİFT SAYISI VE KESİTİ
(mm2)		KABLO ÇAPI
(mm)		BAKIR AĞIRLIĞI
(kg/km)		YAKLAŞIK KABLO AĞIRLIĞI
(kg/km)		STANDART UZUNLUK
(mt)
3202220232 x 2 x 0,225,10828100/500/1000
3202220333 x 2 x 0,225,401337100/500/1000
3202220434 x 2 x 0,225,901749100/500/1000
3202220535 x 2 x 0,226,802162100/500/1000
3202220636 x 2 x 0,227,302673100/500/1000
3202220838 x 2 x 0,228,103382100/500/1000
32022210310 x 2 x 0,229,3042100100/500/1000
32022212312 x 2 x 0,229,5051122100/500/1000
32022214314 x 2 x 0,2210,1060142100/500/1000
32022216316 x 2 x 0,2210,7068165100/500/1000
32022218318 x 2 x 0,2211,3076177100/500/1000
32022220320 x 2 x 0,2212,4084202100/500/1000

3202340232 x 2 x 0,345,701337100/500/1000
3202340333 x 2 x 0,346,101950100/500/1000
3202340434 x 2 x 0,346,902671100/500/1000
3202340535 x 2 x 0,347,703284100/500/1000
3202340636 x 2 x 0,348,303897100/500/1000
3202340737 x 2 x 0,348,8045106100/500/1000
3202340838 x 2 x 0,349,3051121100/500/1000
32023410310 x 2 x 0,3410,5064146100/500/1000
32023412312 x 2 x 0,3410,8077170100/500/1000
32023414314 x 2 x 0,3411,5090190100/500/1000
32023416316 x 2 x 0,3412,60102225100/500/1000
32023418318 x 2 x 0,3413,30115250100/500/1000
32023420320 x 2 x 0,3414,10128270100/500/1000

3202500232 x 2 x 0,507,201951100/500/1000
3202500333 x 2 x 0,507,702967100/500/1000
3202500434 x 2 x 0,508,403893100/500/1000
3202500535 x 2 x 0,509,6047111100/500/1000
3202500636 x 2 x 0,5010,5053124100/500/1000
3202500737 x 2 x 0,5011,1062151100/500/1000
3202500838 x 2 x 0,5011,5070170100/500/1000
32025010310 x 2 x 0,5013,5087211100/500/1000
32025012312 x 2 x 0,5013,80107246100/500
32025014314 x 2 x 0,5014,70120275100/500
32025016316 x 2 x 0,5015,70140307100/500
32025018318 x 2 x 0,5016,70155345100/500
32025020320 x 2 x 0,5017,70170378100/500

3202750232 x 2 x 0,757,902664100/500/1000
3202750333 x 2 x 0,758,403991100/500/1000
3202750434 x 2 x 0,759,5052120100/500/1000
3202750535 x 2 x 0,7510,5065144100/500/1000
3202750636 x 2 x 0,7511,5078172100/500/1000
3202750637 x 2 x 0,7512,6091197100/500/1000
3202750838 x 2 x 0,7513,00104219100/500
32027510310 x 2 x 0,7514,80130273100/500
32027512312 x 2 x 0,7515,10156310100/500
32027514314 x 2 x 0,7516,30182357100/500
32027516316 x 2 x 0,7517,40208403100/500
32027518318 x 2 x 0,7518,30234443100/500
32027520320 x 2 x 0,7519,50260487100/500

3202010232 x 2 x 18,603688100/500/1000
3202010333 x 2 x 19,4054122100/500/1000
3202010434 x 2 x 110,3072153100/500/1000
3202010535 x 2 x 111,5090180100/500/1000
3202010636 x 2 x 113,00108225100/500/1000
3202010737 x 2 x 113,70126250100/500/1000
3202010838 x 2 x 114,20140275100/500
32020110310 x 2 x 116,20175340100/500
32020112312 x 2 x 116,70210388100/500
32020114314 x 2 x 117,80245450100/500
32020116316 x 2 x 119,00280503100/500
32020118318 x 2 x 120,00316555100/500
32020120320 x 2 x 121,40350615100/500

3202150232 x 2 x 1,59,5052111100/500/1000
3202150333 x 2 x 1,510,1078145100/500/1000
3202150434 x 2 x 1,511,10104185100/500/1000
3202150535 x 2 x 1,512,80130230100/500/1000
3202150636 x 2 x 1,513,90150274100/500/1000
3202150737 x 2 x 1,514,80178302100/500/1000
3202150838 x 2 x 1,515,30208337100/500
32021508310 x 2 x 1,517,60255425100/500
32021512312 x 2 x 1,518,00305486100/500
32021514314 x 2 x 1,519,20353557100/500
32021516316 x 2 x 1,520,60400633100/500
32021518318 x 2 x 1,521,70448700100/500
32021520320 x 2 x 1,523,50505793100/500

3202250232 x 2 x 2,511,7088171100/500/1000
3202250333 x 2 x 2,512,90126251100/500/1000
3202250434 x 2 x 2,514,30168291100/500/1000
3202250535 x 2 x 2,515,80210361100/500/1000
3202250636 x 2 x 2,517,50255433100/500
3202250737 x 2 x 2,518,60294484100/500
3202250838 x 2 x 2,519,30334542100/500
32022510310 x 2 x 2,521,90410665100/500
32022512312 x 2 x 2,522,80490798100/500
32022514314 x 2 x 2,524,40572917100/500
32022516316 x 2 x 2,526,106531050100/500
32022518318 x 2 x 2,527,607341165100/500
32022520320 x 2 x 2,529,508151290100/500
