• Bu istasyon lehimleme el aparatı olarak WXMP kullanmaktadır. El Aparatının uç kataloğu (RT Micro) için tıklayınız.

This station is ESD safe.
Dimensions L x W x H       : 170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch)
Weight                                : approx. 3,2 kg
Channels                            : 1
Power supply                     : 230 V, 50 Hz
Power consumption          : 200 W
Protection class                 : I
Temperature range             : Adjustable from 50°C – 550°C (150°F – 999°C)
                                              Adjustable temperature range varies among tools
Temperature accuracy       : ± 9°C (± 17°F)
Temperature stability         : ± 2°C (± 4°F)
Equipotential bonding       : Via 3,5 mm pawl socket on back of device
Material touch panel           : Made of antistatic coated material
Dimensions touch panel    : 74 x 38 mm
Resolution                           : 255 x 127 (128) dots
Display backlighting           : 4 LEDs
Equipotentional bonding   : The 3,5 mm switch offers four different options:
a) Hard grounded without plug (original delivery)
b) Equipotential bonding: with plug, compensation line on center contact
c) Potential free: with plug
d) Soft grounded: with plug and soldered resistor grounded via selected resistor
USB interface                      : USB interface in front of firmware updates, parameterization and monitoring
                                                USB interface supports all standard USB flash drive types

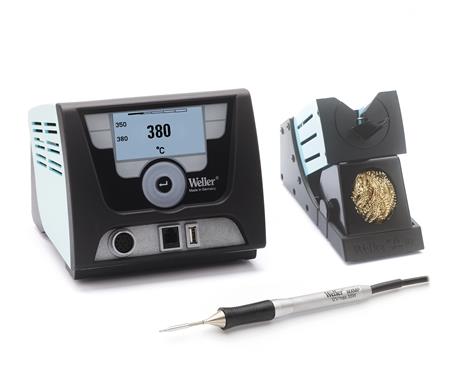

Power unit WX 1
Innovative operation concept
Robust touch screen with ESD safe glas
Intuitive use with turn-click-wheel with enter key and finger guide.
Blue LED backlighting
Multilingual menu navigation
High functionality
No safety rest with Stop & Go function needed thanks to integrated acceleration sensor
Optimized precision, better stability by sensor in the soldering iron
Specific parameterization of tool by storgage medium in hand piec.
Visual process control via blue LED ring light
All WX tools connectable
