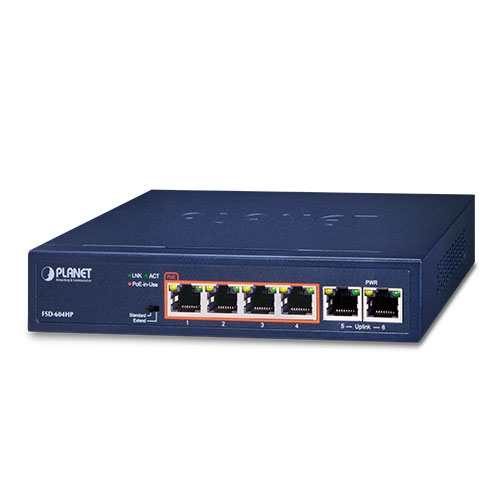

| Hardware Specifications | |
|---|---|
| Network Connector | 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX |
| PoE Inject Port | 4-port with 802.3af/at PoE injector function (Port-1 to Port-4) |
| LED Display | System: Power (Orange) Per PoE port: |
| DIP Switch | 100m distance in standard mode 250m distance in extend mode (based on the cable category) |
| Switch Architecture | Store and Forward switch architecture |
| MAC Address Table | 2K MAC address table with auto learning function |
| Switch Fabric | 1.2Gbps |
| Switch Throughput | 0.89Mpps @64bytes |
| Maximum Packet Size | 1536bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
| Power Requirements | AC 100~240V, 2A max. |
| Power Consumption | Max. 63 watts, 214 BTU |
| Dimensions (W x D x H) | 168 x 93 x 32 mm |
| Weight | 499g |
| ESD Protection | Contact discharge of ±4KV DC Air discharge of ±6KV DC |
| Surge Immunity | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 60 watts |
| Number of PDs, 7 watts | 4 |
| Number of PDs, 15.4 watts | 4 |
| Number of PDs, 30 watts | 2 |
| Standard Conformance | |
| EMI Safety | CE, FCC |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
