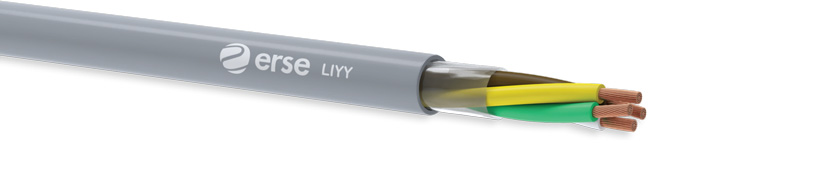

Erse Kablo - LIYY

Erse Kablo – LIYY

Kategoriler: ,

Açıklama

  • Enstrüman ve kontrol mühendisliğinde
  • Endüstriyel elektronikte
  • Bilgisayar ve ofis makinelerinde
  • Bina içi haberleşme sistemlerinde
  • Bina içi ses sistemlerinde
  • Güvenlik sistemlerinde

NOTLAR

  • Esnek yapıları ile dar alanlarda rahatlıkla uygulanabilirler.
  • Bu tip kablolar dış ortamlarda kullanılmaz.
  • LIYY-OZ: Yeşil/sari toprak koruma damarsiz kablo.
  • LIYY-JZ: Yeşil/sari toprak koruma damarli kablo.

İletkenIEC 60228; DIN VDE 0295; EN 60228 Sınıf 5
Bükülü Elektrolitik Tavlı Bakır
YalıtımEN 50290-2-21 PVC Kompaund
Yalıtım RenkDIN 47100
BükümUygun adımda katlar halinde
Ayırıcı BantPes Bant
KılıfEN 50290-2-22 PVC Kompaund
Kılıf RengiRAL 7001 Gri

İLETKEN
DİRENCİ		YALITIM DİRENCİEFEKTİF
KAPASİTE		AKIM TAŞIMA
KAPASİTESİ		ÇALIŞMA VOLTAJI
mm2
0,22
0,34
0,50
0,75
1,0
1,5
2,5		Ω/km
79
56
39
26
19,5
13,3
7,98		MΩxkm
0,22mm²/0,34mm²= 200
≥0,50mm²= 20		mm2
0,22
0,34
0,50
0,75
1,0
1,5
2,5		pf/m
110
110
120
120
120
120
120		mm2
0,22
0,34
0,50
0,75
1,0
1,5
2,5		A
2,5
4,5
6,0
13
16
20
25		0,22 ve 0,34 mm2 = 250 V
≥0,50 mm2 = 300/500 V
TEST VOLTAJIBÜKÜLME
YARIÇAPI		ÇALIŞMA
SICAKLIĞI		ALEV GECİKTİRİCİLİK
TESTİ
0,22 ve 0,34 mm2 = 1200 V
≥0,50 mm2 = 2000 V		7,5x Cable Ø-30ºCs1+70ºCIEC 60332-1-2
DIN EN 60332-1-2
EN 60332-1-2

KOD NODAMAR SAYISI VE KESİTİ
(mm2)		KABLO ÇAPI
(mm)		BAKIR AĞIRLIĞI
(kg/km)		YAKLAŞIK KABLO AĞIRLIĞI
(kg/km)		STANDART UZUNLUK
(mt)
3200220232 x 0,223,40414100/500/1000
3200220333 x 0,223,80718100/500/1000
3200220434 x 0,224,10923100/500/1000
3200220535 x 0,224,401127100/500/1000
3201220636 x 0,224,801234100/500/1000
3201220838 x 0,225,201443100/500/1000
32012210310 x 0,226,002051100/500/1000
32012212312 x 0,226,202560100/500/1000
32012214314 x 0,226,902974100/500/1000
32012216316 x 0,227,203383100/500/1000
32012218318 x 0,227,5038101100/500/1000
32012220320 x 0,227,7041110100/500/1000

3200340232 x 0,343,80619100/500/1000
3200340333 x 0,344,301025100/500/1000
3200340434 x 0,344,601331100/500/1000
3200340535 x 0,345,001541100/500/1000
3201340636 x 0,345,401946100/500/1000
3201340838 x 0,345,802560100/500/1000
32013410310 x 0,347,003180100/500/1000
32013412312 x 0,347,203892100/500/1000
32013414314 x 0,347,8044103100/500/1000
32013416316 x 0,348,2050112100/500/1000
32013418318 x 0,348,5057125100/500/1000
32013420320 x 0,348,8063136100/500/1000

3200500232 x 0,504,90927100/500/1000
3200500333 x 0,505,101444100/500/1000
3200500434 x 0,505,601752100/500/1000
3200500535 x 0,506,202163100/500/1000
3201500636 x 0,506,902576100/500/1000
3201500737 x 0,506,902981100/500/1000
3201500838 x 0,507,203488100/500/1000
32015010310 x 0,508,7041101100/500/1000
32015012312 x 0,508,9050121100/500/1000
32015014314 x 0,509,6058143100/500/1000
32015016316 x 0,5010,2066160100/500/1000
32015018318 x 0,5010,7075178100/500/1000
32015020320 x 0,5011,1083191100/500/1000

3200750232 x 0,755,301435100/500/1000
3200750333 x 0,755,602244100/500/1000
3200750434 x 0,756,002758100/500/1000
3200750535 x 0,757,203572100/500/1000
3201750636 x 0,757,504288100/500/1000
3201750737 x 0,757,504592100/500/1000
3201750838 x 0,757,9054109100/500/1000
32017510310 x 0,759,5066134100/500/1000
32017512312 x 0,759,8079157100/500/1000
32017514314 x 0,7510,5092184100/500/1000
32017516316 x 0,7511,10102208100/500/1000
32017518318 x 0,7512,10118237100/500/1000
32017520320 x 0,7512,50128255100/500/1000

3200010232 x 15,701774100/500/1000
3200010333 x 16,002561100/500/1000
3200010434 x 16,703476100/500/1000
3200010535 x 17,204393100/500/1000
3201010636 x 18,0052112100/500/1000
3201010737 x 18,0061129100/500/1000
3201010838 x 18,5070136100/500/1000
32010110310 x 110,4088179100/500/1000
32010112312 x 110,80104197100/500/1000
32010114314 x 111,30122224100/500/1000
32010116316 x 111,50138251100/500/1000
32010118318 x 113,10157295100/500/1000
32010120320 x 113,50170318100/500/1000

3200150232 x 1,56,102652100/500/1000
3200150333 x 1,56,604071100/500/1000
3200150434 x 1,57,205190100/500/1000
3200150535 x 1,58,0064116100/500/1000
3201150636 x 1,58,7076139100/500/1000
3201150737 x 1,58,7088151100/500/1000
3201150838 x 1,59,30101175100/500/1000
32011510310 x 1,511,30127217100/500/1000
32011512312 x 1,511,60152246100/500/1000
32011514314 x 1,512,60178294100/500/1000
32011516316 x 1,513,40201331100/500/1000
32011518318 x 1,514,00225368100/500/1000
32011520320 x 1,515,00248401100/500/1000

3200250232 x 2,57,704278100/500/1000
3200250333 x 2,58,1063109100/500/1000
3200250434 x 2,58,9084140100/500/1000
3200250535 x 2,510,10105171100/500/1000
3201250636 x 2,511,00126211100/500/1000
3201250737 x 2,511,00147236100/500/1000
3201250838 x 2,511,60170274100/500/1000
32012510310 x 2,514,50208340100/500/1000
32012512312 x 2,514,90243402100/500/1000
32012514314 x 2,515,70287460100/500/1000
32012516316 x 2,516,90328524100/500/1000
32012518318 x 2,517,80368595100/500/1000
32012520320 x 2,518,40413647100/500/1000
