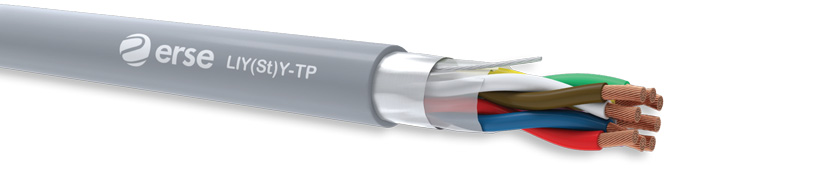

Erse Kablo - LIY(St)Y-TP

Erse Kablo – LIY(St)Y-TP

Kategoriler: ,

Açıklama

  • Elektromanyetik karışım ve girişimlerin olduğu
  • Enstrüman ve kontrol mühendisliğinde
  • Endüstriyel elektronikte
  • Bilgisayar ve ofis makinelerinde
  • Bina içi haberleşme sistemlerinde
  • Bina içi ses sistemlerinde
  • Güvenlik sistemlerinde

NOTLAR

  • Esnek yapıları ile dar alanlarda rahatlıkla uygulanabilirler.
  • Bu tip kablolar dış ortamlarda kullanılmaz.
  • LIY(ST)Y-TP-OZ: Numara kodlu siyah damarlar.

İletkenIEC 60228; DIN VDE 0295; EN 60228 Sınıf 5
YalıtkanEN 50290-2-21 PVC Kompaund
Yalıtım RenkDIN 47100
BükümÇift büküm katlar halinde
Ayırıcı BantPes Bant
EkranKalaylı Bakır Toprak Teli + Al-Pes Bant
KılıfEN 50290-2-22 PVC Kompaund
Kılıf RengiRAL 7001 Gri

İLETKEN
DİRENCİ		YALITIM DİRENCİEFEKTİF
KAPASİTE		EMPEDANSİNDÜKTANSAKIM TAŞIMA
KAPASİTESİ		ÇALIŞMA VOLTAJI
mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		Ω/km
79
56
39
26
19,5
13,3
7,98		MΩxkm
0,22mm²/0,34mm²= 200
≥ 0,50mm²= 20		mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		pf/m
110
110
120
120
130
140
150		78Ω0,67 mH/kmmm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5		A
2,5
4,5
6,0
13
16
20
25		0,22 ve 0,34 mm² = 250 V
≥ 0,50 mm² = 300/500 V
TEST VOLTAJIBÜKÜLME
YARIÇAPI		ÇALIŞMA
SICAKLIĞI		ALEV GECİKTİRİCİLİK
TESTİ		EMC*
0,22 ve 0,34 mm² = 1200 V
≥ 0,50 mm² = 2000 V		10x Cable Ø-30ºCs1+70ºCIEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2		ELEKTROMANYETİK
UYUMLU

KOD NODAMAR SAYISI VE KESİTİ
(mm2)		KABLO ÇAPI
(mm)		BAKIR AĞIRLIĞI
(kg/km)		YAKLAŞIK KABLO AĞIRLIĞI
(kg/km)		STANDART UZUNLUK
(mt)
3221220232 x 2 x 0,225,501132100/500/1000
3221220333 x 2 x 0,225,801542100/500/1000
3221220434 x 2 x 0,226,301960100/500/1000
3221220535 x 2 x 0,227,002369100/500/1000
3221220636 x 2 x 0,227,702879100/500/1000
3221220737 x 2 x 0,228,203289100/500/1000
3221220838 x 2 x 0,228,5036107100/500/1000
32212210310 x 2 x 0,229,9044126100/500/1000
32212212312 x 2 x 0,2210,1053141100/500/1000
32212214314 x 2 x 0,2210,7061160100/500/1000
32212216316 x 2 x 0,2211,3070175100/500/1000
32212218318 x 2 x 0,2211,9078195100/500/1000
32212220320 x 2 x 0,2213,0087223100/500/1000

3221340232 x 2 x 0,346,101541100/500/1000
3221340333 x 2 x 0,346,502156100/500/1000
3221340434 x 2 x 0,347,102876100/500/1000
3221340535 x 2 x 0,348,103491100/500/1000
3221340636 x 2 x 0,348,7040104100/500/1000
3221340737 x 2 x 0,349,2047114100/500/1000
3221340838 x 2 x 0,3410,0053134100/500/1000
32213410310 x 2 x 0,3411,1066161100/500/1000
32213412312 x 2 x 0,3411,2079185100/500/1000
32213414314 x 2 x 0,3412,1092205100/500/1000
32213416316 x 2 x 0,3413,20104242100/500/1000
32213418318 x 2 x 0,3413,90116266100/500/1000
32213420320 x 2 x 0,3414,70130290100/500/1000

3221500232 x 2 x 0,507,601958100/500/1000
3221500333 x 2 x 0,508,102775100/500/1000
3221500434 x 2 x 0,508,8036100100/500/1000
3221500535 x 2 x 0,5010,2044120100/500/1000
3221500636 x 2 x 0,5011,1053140100/500/1000
3221500737 x 2 x 0,5011,7062165100/500/1000
3221500838 x 2 x 0,5012,1070180100/500/1000
32215010310 x 2 x 0,5014,1087230100/500/1000
32215012312 x 2 x 0,5014,40105260100/500/1000
32215014314 x 2 x 0,5015,30120300100/500/1000
32215016316 x 2 x 0,5016,30138328100/500/1000
32215018318 x 2 x 0,5017,10155362100/500/1000
32215020320 x 2 x 0,5018,50170413100/500/1000

3221750232 x 2 x 0,758,303080100/500/1000
3221750333 x 2 x 0,758,804396100/500/1000
3221750434 x 2 x 0,7510,1056130100/500/1000
3221750535 x 2 x 0,7511,2070153100/500/1000
3221750636 x 2 x 0,7512,1082182100/500/1000
3221750737 x 2 x 0,7513,2094210100/500/1000
3221750838 x 2 x 0,7513,70110232100/500/1000
32217510310 x 2 x 0,7515,30135288100/500/1000
32217512312 x 2 x 0,7515,70160335100/500/1000
32217514314 x 2 x 0,7516,70185373100/500/1000
32217516316 x 2 x 0,7518,20210434100/500/1000
32217518318 x 2 x 0,7519,10236483100/500/1000
32217520320 x 2 x 0,7520,30265525100/500/1000

3221010232 x 2 x 18,803999100/500/1000
3221010333 x 2 x 19,9056134100/500/1000
3221010434 x 2 x 110,9074160100/500/1000
3221010535 x 2 x 112,0093195100/500/1000
3221010636 x 2 x 113,50110241100/500/1000
3221010737 x 2 x 114,20126270100/500/1000
3221010838 x 2 x 114,70143300100/500/1000
32210110310 x 2 x 116,60176353100/500/1000
32210112312 x 2 x 117,00216405100/500/1000
32210114314 x 2 x 118,60245480100/500/1000
32210116316 x 2 x 119,90280538100/500/1000
32210118318 x 2 x 120,80315600100/500/1000
32210120320 x 2 x 122,50348672100/500/1000

3221150232 x 2 x 1,59,9056123100/500/1000
3221150333 x 2 x 1,510,6080160100/500/1000
3221150434 x 2 x 1,511,60107200100/500/1000
3221150535 x 2 x 1,513,30130250100/500/1000
3221150636 x 2 x 1,514,40157305100/500/1000
3221150737 x 2 x 1,515,30176325100/500/1000
3221150838 x 2 x 1,515,80200360100/500/1000
32211510310 x 2 x 1,518,30250454100/500/1000
32211512312 x 2 x 1,518,70306522100/500/1000
32211514314 x 2 x 1,519,90348600100/500/1000
32211516316 x 2 x 1,521,60400700100/500/1000
32211518318 x 2 x 1,523,60448770100/500/1000
32211520320 x 2 x 1,524,10495840100/500/1000

3221250232 x 2 x 2,512,3092175100/500/1000
3221250333 x 2 x 2,513,40130256100/500/1000
3221250434 x 2 x 2,514,80170314100/500/1000
3221250535 x 2 x 2,516,40210382100/500/1000
3221250636 x 2 x 2,518,30250460100/500/1000
3221250737 x 2 x 2,519,40290518100/500/1000
3221250838 x 2 x 2,520,10332580100/500/1000
32212510310 x 2 x 2,523,10413730100/500/1000
32212512312 x 2 x 2,523,60495841100/500/1000
32212514314 x 2 x 2,525,60579987100/500/1000
32212516316 x 2 x 2,527,306601120100/500/1000
32212518318 x 2 x 2,528,807401245100/500/1000
32212520320 x 2 x 2,530,908241390100/500/1000
